As part of our platform research in Zimperium zLabs, I have recently discovered a vulnerability in a privileged Android service called MediaCasService and reported it to Google. Google designated it as CVE-2018-9539 and patched it in the November security update (2018-11-01 patch level).

In this blog post, I will describe the technical details of this use-after-free vulnerability, along with some background information and the details of the proof-of-concept I wrote that triggers it. Link to the full proof-of-concept is available at the end of the blog post.

MediaCasService

The Android service called MediaCasService (AKA android.hardware.cas) allows apps to descramble protected media streams. The communication between apps and MediaCasService is performed mostly through two interfaces/objects: Cas, which manages the keys (reference: MediaCas Java API), and Descrambler, which performs the actual descramble operation (reference: MediaDescrambler Java API).

Underneath the MediaCasService API, the actual operations are performed by a plugin, which is a library that the service loads. In our case, the relevant plugin is the ClearKey plugin, whose library is libclearkeycasplugin.so.

In order to descramble data, apps need to use both the Cas object and the Descrambler object. The Descrambler object is used for the actual descramble operation, but in order to do that, it needs to be linked to a session with a key. In order to manage sessions and add keys to them, the Cas object is used.

Internally, the ClearKey plugin manages sessions in the ClearKeySessionLibrary, which is essentially a hash table. The keys are session IDs, while the values are the session objects themselves. Apps receive the session IDs which they can use to refer to the session objects in the service.

After creating a session and attaching a key to it, apps are in charge of linking it to a Descrambler object. The descrambler object has a member called mCASSession, which is a reference to its session object and is used in descramble operations. While there is no obligation to do so, once a Descrambler session is linked with a session object, an app can remove that session from the session library. In that case, the only reference to the session object will be through the Descrambler’s mCASSession.

An important note is that references to session objects are held through strong pointers (sp class). Hence, each session object has a reference count, and once that reference count reaches zero the session object is released. References are either through the session library or through a Descrambler’s mCASSession.

The vulnerability

Let’s take a look at ClearKey’s descramble method:

Snippet from frameworks/av/drm/mediacas/plugins/clearkey/ClearKeyCasPlugin.cpp (source)

As you can see, the session object referenced by mCASSession is used here in order to decrypt, but its reference count does not increase while it is being used. This means that it is possible for the decrypt function to run with a session object which was released, as its reference count was decreased to zero.

This allows an attacker to cause a use-after-free (the session object will be used after it was freed) through a race condition. Before running descramble, the attacker would remove the reference to the session object from the session library, leaving the Descrambler’s mCASSession as the only reference to the session. Then, the attacker would run descramble at the same time as setting the session of the Descrambler to another session, which can cause a race condition. Setting a different session for the Descrambler would release the original session object (its reference count would drop to zero); if this happens in the middle of mCASSession->decrypt, then decrypt would be using a freed session object.

Proof of concept

Before going into the details of the PoC, there is one note about its effect.

In this PoC, nothing gets allocated instead of the released session object; we just let the decrypt function use a freed object. One of the members of the session object that decrypt uses is a mKeyLock, which is essentially a mutex that decrypt attempts to lock:

Snippet from frameworks/av/drm/mediacas/plugins/clearkey/ClearKeyCasPlugin.cpp (source)

As you can expect, when a session object is released, the mutex of its mKeyLock is destroyed. Therefore, when the use-after-free is triggered, decrypt attempts to use an already destroyed mutex.

Interestingly, this is where a recent change comes into place. Up until Android 8.1, attempting to use a destroyed mutex would return an error, which in this case would simply be ignored. Since Android 9, attempting to use a destroyed mutex results in an abort, which crashes the process:

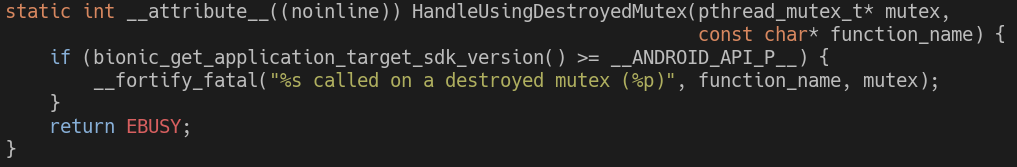

Snippet from bionic/libc/bionic/pthread_mutex.cpp (source)

This means that while the PoC should always cause a use-after-free, only Android 9 has a way to detect whether it worked or not. In older versions, there is no noticeable effect. Therefore, the PoC is mainly intended to run on Android 9.

After covering the effect of the PoC, here is a high-level overview of the actions it performs:

1. Initialize Cas and Descrambler objects.
2. Use the Cas object in order to create two sessions: session1 and session2. Both of them will be referenced from the session library.
3. Link session1 to the Descrambler object, and then use the Cas object in order to remove it from the session library. Now, session1 only has a reference from the Descrambler object; its reference count is one.
4. At the same time:
   • Run multiple threads which perform descramble through the Descrambler object.
   • Set the session of the Descrambler object to session2.
5. If running descramble in one of the threads did not return, it means that the PoC was successful and the service crashed. If not, retry again from step 2.

Full source code for the PoC is available on GitHub .

Timeline

• 08.2018 – Vulnerability discovered
• 08.2018 – Vulnerability details + PoC sent to Google
• 11.2018 – Google distributed patches

If you have any questions, you are welcome to DM me on Twitter (@tamir_zb).
